Huawei NE40E Universal Service Router Product Classified

Huawei NE40E Universal Service Router (hereinafter referred to as the NE40E) is a high-end router. The NE40E is positioned as the edge or convergence router on the IP backbone network.

Huawei Quidway NE40E is based on a 400G platform, which is designed to save energy. Each slot has a forwarding capacity of 400Gbps, and the bandwidth of each slot can be smoothly expanded from 40Gbps to 400Gbps, satisfying the bandwidth demands of the next three to five years. The NE40E is compact in design and the interface density can reach 160 x 10G for a single NE40E and 240 x 10G for a single cabinet, which greatly saves space.

Based on the powerful Versatile Routing Platform (VRP), the NE40E features the following:

    Rich services

    Large capacity

    High performance

    High availability

The NE40E can be classified into the NE40E-X16A, NE40E-X16, NE40E-X8, NE40E-X3, and NE40E-8.

Huanetwork.com also is a platform for us to learn and share knowledge. You can find the information of the products: FAQ, datasheet, specification and so on, and we has a lot of experience in Huawei FTTx, DSLAM, router, switch, security, WLAN and transport products and solutions. Huanetwork Lab, Pre Sales and After Sales Support Service will give you deep impression.

More related topics:

Comparison between Huawei AR Series Routers

Card Structure and Dimensions for Huawei Routers

FAQs on Huawei AR Series Routers

Huawei NE Series Routers Overview

Network Topologies of Huawei OptiX OSN 1500

Huawei OptiX OSN 1500 supports a wide range of network topologies applicable to the packet mode, TDM mode, and hybrid mode. The OptiX OSN supports end-to-end management by interconnecting with or traversing third-party equipment or a third-party network.

Basic Network Topologies

Network Topology		Legend
1	Chain
2	Ring
3	Tangent rings
4	Intersecting rings

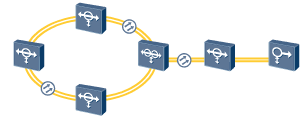

5	Ring with chain
6	Dual node interconnection (DNI)
7	Hub
Legend:

NE Categories

The OSN 1500 supports separate and combined configuration of the following types: terminal multiplexer (TM), add/drop multiplexer (ADM), and multiple add/drop multiplexer (MADM).

More related topics

The Boards Classification of the Huawei OSN 2500

Huawei OSN3500 Typical Networking in Packet Mode (1)

Huawei OSN3500 Typical Networking in Packet Mode (2)

Huawei OptiX OSN 3500 Product Features

To meet the growing demands of Metropolitan Area Networks (MANs), Huawei has developed Huawei OptiX OSN 3500—next-generation intelligent optical transmission system. Primarily used at the metropolitan convergence and backbone layer, Huawei OptiX OSN 3500 incorporates an intelligent optical transmission platform and core optical transmission system to schedule and transmit services of different types and granularities. Leveraging "universal switch" architecture, the OptiX OSN 3500 can be used in packet or Time Division Multiplexing (TDM) mode. Combined with other Huawei equipment, the OptiX OSN 3500 supports various networking applications, such as pure packet mode, hybrid networking (packet and TDM mode overlay networking), and pure TDM mode. A proper networking solution can optimize both data and conventional Synchronous Digital Hierarchy (SDH) service processing.

MPLS-TP based Transformer for Metro Aggregation & Core

•  Large Capacity: 200G TDM / 100G Packet universal switch, 15 service processing slots and 16 service interface slots.

•  Perfect Evolution Capability: 100% TDM to 100% Packet evolution based one platform.

•  Powerful OAM: TP-Assist, MPLS-TP OAM, MPLS OAM, Ethernet OAM, etc.

Smart Transport for Multiservice Universal Switch and Transport

•  Smart transport based on universal switch for all types of services, including Ethernet, ATM, TDM.

•  Carefree evolution among different types of services, such as from 100% TDM to 100% packet, ‘0’ waste of investment.

•  Universal switch at any level of packet and TDM in their original format, high efficiency and best performance, ‘0’ waste of bandwidth.

MPLS-TP for Highly Efficient and Highly Available Packet Transport

•  Guaranteed Performance from end-to-end committed bandwidth mechanism.

•  99.999% availability: 50ms recovery for both linear and ring applications.

•  SDH-like OAM mechanism capable of fast detection and troubleshooting, including end-to-end performance monitoring.

TP-Assist for Easy O&M

•  MPLS-TP based O&M solution ‘TP-Assist’ providing efficient planning, fast deployment and easy maintenance, making the large-scale packet network easily manageable.

•  Traffic based crystal clear O&M is supported with visual network-level view, graphical format to display end-to-end service configuration, performance and status.

•  Better maintenance experience even than SDH: visualized end-to-end bandwidth management, intelligently locating 92% failure, analyzable and predicable network management.

Huanetwork.com also is a platform for us to learn and share knowledge. You can find the information of the products: FAQ, datasheet, specification and so on, and we has a lot of experience in Huawei FTTx, DSLAM, router, switch, security, WLAN and transport products and solutions. Huanetwork Lab, Pre Sales and After Sales Support Service will give you deep impression.

More related topics

Huawei OptiX OSN 3500 Intelligent Optical Transmission System

Huawei OptiX OSN 1500 Overview

Huawei OSN Products

The Boards Classification of the Huawei OSN 2500

Huawei S5700 Series Switch Application Scenarios

Huawei S5700 series switch can function as an access device on a large-sized enterprise network or an aggregation device on a small- or medium-sized campus network. It supports link aggregation and dual-homing to improve network reliability.

Application of the S5700 on a Large-scale Enterprise Campus Network

As shown, the S5700 is deployed at the access layer of a campus network to provide high performance, multi-service, and highly reliable enterprise network.

Huawei S5700 provides various terminal security management features, and supports functions such as PoE, voice VLAN, and QoS. The S5700 can be used for desktop access and provides GE access.

Huawei S5700 provides various security features including ARP security, IP security, IP source guard, and user access control policies such as NAC and ACLs, to control access of user terminals.

Huawei S5700 provides Easy-Operation and USB-based deployment, which facilitates deployment and management.

Application of the S5700 on a Small- or Medium-scale Enterprise Campus Network

As shown, the S5700 is deployed at the aggregation layer of a campus network to provide high performance, multi-service, and highly reliable enterprise network.

Huawei S5700s connect to access switches through 100M/1000M interfaces, provide high performance and large switching capacity, and connect to core switches through 10GE optical interfaces. The network provides 10 Gbit/s rate for the backbone layer and 100 Mbit/s access rate for terminals, meeting requirements for high bandwidth and multi-service.

Huawei S5700 provides SEP and RRPP to implement millisecond-level protection switchover. S5700s form a stack system by using iStack technology to implement the distributed forwarding structure and fast fault recovery. The stack system increases the number of user interfaces and improves packet processing capability. The iStack-enabled S5700s can be managed in a uniform manner to facilitate network management and maintenance.

Application of the S5700 on a Small-scale Enterprise Campus Network

As core switches of a small-scale enterprise network, the S5700s have powerful aggregation and routing capabilities. S5700s use iStack to implement backup among multiple devices and ensure high reliability. The S5700 provides various access control policies to achieve centralized management and simplify configuration.

More related topic:

Huawei S5700 Interface Card Description

Performance specifications of the Huawei S5700

Huawei switch interface data processing -S5700 Series

To build the future IT network – Huawei S5700 switch

Huawei OptiX OSN 8800 Product Features

Huawei OptiX OSN 8800 equipments use the same software and hardware platforms and therefore they share most of the boards. However, each of them has its own highlights that address diverse network requirements.

The OptiX OSN 8800 supports 40 Gbit/s and 100 Gbit/s line rates and a 6.4 Tbit/s cross-connect capacity. It features power saving, and high reliability and maintainability.

Highest Cross-Connect Capacity with Flexible Large-Capacity Service Grooming

• Features high cross-connect capacity. A single subrack supports a maximum of 6.4 Tbit/s cross-connect capacity, implementing large-capacity service grooming. Only one subrack is required for the large-capacity service grooming and therefore lowers power consumption and reduces the floor space.
• Supports multi-granularity OTN cross-connection, that is, ODUk cross-connection, where k can be 0, 1, 2, 2e, 3, 4, or flex.
• Supports encapsulation of VC, ODUk, and packet services by using universal line boards and unified switching of VC, ODUk, and packet services by using cross-connect boards, which achieves converged service grooming planes and flexible bandwidth allocation.

Leading 100G Transport Solution

• Supports comprehensive soft decision (SDFEC and SDFEC2) and hard decision (HFEC) schemes to address various long-haul transmission requirements.
• Supports cost-effective metro 100G solutions to provide large-bandwidth and low-delay pipes for metro networks.
• Supports hybrid transmission of 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s services, protecting carriers’investments.
• Supports flexible ROADM to provide the optical-layer platform for a beyond 100G system in future.

Tier 1 Reliability and Mass Data Transmission with Optimal Architecture

• Provides multiple network-level protection schemes and intelligent network management based on automatically switched optical network (ASON)/generalized multiprotocol label switching (GMPLS) technologies to protect all fibers and services.
• Provides protection for power supply devices, fans, communication control boards, and the cross-connection resource pool.

Low Power Consumption and High Maintainability, Providing the Minimizing OPEX

• Provides environment-friendly OTN solutions using various low-carbon technologies.
• Newly supports 19-inch subracks and can be installed in various types of cabinets, such as 19-inch cabinet or ETSI cabinet.
• Supports overall network performance monitoring using the user-friendly optical doctor (OD) system embedded in the U2000.
• Supports seamless interconnection with OptiX OSN 6800/3800/1800 and achieves end-to-end network management.

More releted:

Huawei OptiX OSN 8800
Huawei OptiX OSN 500 Network application

Huawei OptiX OSN 1500 Overview

Huawei OptiX OSN 3500 Intelligent Optical Transmission System

Huawei AR Series Routers Product Features

The Huawei AR series routers use leading hardware platforms and software architectures. The ARs provide integrated network solutions to enterprise customers with minimum investment costs; therefore, they can meet the many facets of future business expansion and IT industry developments.

Carrier-Class Reliability

• The boards are hot swappable and guarantee carrier-class reliability.
• The ARs are designed to provide quality service and comply with telecommunication standards.
• The ARs protect networks against attacks.
• The ARs support in-service patching so that the system software can be upgraded during system operation.
• The AR2200&3200 support redundant power supply units and fans. If one power supply unit or fan is faulty, the AR2200&3200 will still be able to operate.

Service Integration Capability

The Huawei AR series routers integrate various services of routers, switches, and wireless devices, including voice, firewall, WLAN, and VPN.

Hardware Extensibility

The ARs provide the highest port density in the industry and include flexible service interface card (SIC) slots, allowing enterprise customers to connect to LAN, WAN, or wireless networks. The ARs provide the most economical enterprise network solutions.

The ARs support flexible slot combination. For example, two SIC slots can be combined into a wide SIC (WSIC) slot, two WSIC slots are combined into an extra SIC (XSIC) slot, and two XSIC slots can be combined into an extended extra SIC (EXSIC) slot. In addition, a SIC card can be installed into a WSIC slot.

NOTE: AR150 and AR200 series do not support subcards.

Remote Maintenance Capability

In addition to one-stop deployment, plug and play capability, and remote commissioning functions, the ARs manage the customer premises equipment (CPE) remotely. The remote maintenance function improves efficiency and greatly reduces maintenance costs.

Huanetwork.com also is a platform for us to learn and share knowledge. You can find the information of the products: FAQ, datasheet, specification and so on, and we has a lot of experience in Huawei FTTx, DSLAM, router, switch, security, WLAN and transport products and solutions. Huanetwork Lab, Pre Sales and After Sales Support Service will give you deep impression.

More related:

How to Install Huawei AR150/AR160/AR200 Series Routers?

Huawei AR150 and AR200 Series Routers Specification

Huawei AR150&AR200 Series Enterprise RoutersOrdering Information
